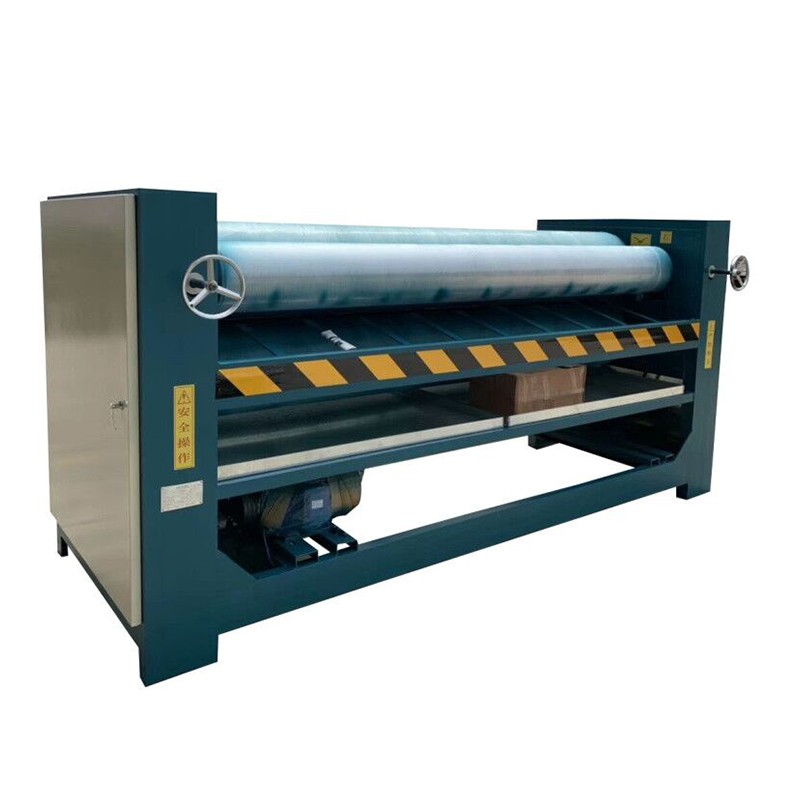

Glue Spreader

Send Inquiry

Product Introduction

Place of Origin	Shandong, China
Condition	New
Type	Plywood Veneer Glue Spreader
Weight (kG)	33000 kg
Applicable Industries	Building Material Shops, Manufacturing Plant,Home Use, Construction works , Energy & Mining. Other
Warranty	More than 5 years
Key Selling Points	Automatic
Usage	Plywood Production
Brand Name	MLG Machine
Voltage	380V/450V
Video outgoing-inspection	Provided
Warranty of core components	More than 5 years
Core Components	Motor, PLC, Other, Engine
Specification	4ft double side glue spreader
Quantity of roller	4
Glue roller length	1400mmm
Rubber roller diameter	245mm419mm
Thickness of rubber	18mm
Diameter of steel roller	217mm
Rotary speed of roller	45mlminladjustable
Motor power	3-4kW
Dimension	2100*12501400
Weight	1.5ton

Glue Spreader (图1)

Specification	4ft double side glue spreader	8ft double side gluing machine	8ft pneumatic gluing machine double side
Quantity of roller	4	4	4
Glue roller length	1400mmm	2700 mm	2700mm
Rubber roller diameter	245mm/419mm	245/419 mm	419mm
Thickness of rubber	18 mm	20 mm	20 mm
Diameter of steel roller	217 mm	296 mm	296mm
Hard cromed on surface of steel roller	yes	yes	yes
Rotary speed of roller	45 m/min/adjustable	45 m/min/adjustable	Adjustable
Motor power	3-4 kw	5.5+11	7.5+7.5+1.5
Dimension	210012501400	340013501600
weight	1.5 ton	2ton	4.6 ton

Glue Spreader (图2)

Features:

1.Coated roller with high quality natural rubber with high mechanical strength, hardness suitable, good wear resistance, good aging resistance, long service life.
2.Steel roller with high-quality thick-walled seamless steel pipe, hard chrome plated and uniform, the surface to do mirror
treatment, and then by grinding and other fine processing from Smooth operation, uniform coating, cost savings.
3.The use of the bottom of the hopper design, do not repeatedly add glue, the province of clean labor, a substantial increase in efficiency.
4.Gearbox for the gear, chain mirror with the drive, stable and reliable and durable.
5.The roller speed by the adjustable motor fine-tuning, control and stability.
6.Roller squeeze force balance, the object received rolling pressure uniformity.
7.Repeat the roll of the same roller and roll force.
8.According to the specific needs of the work to roll the speed of adjustment.

9. the whole machine-wide steel structure, with a door-type shield.

Purpose：

Widely used in plywood factory, furniture factory and sound equipment factory, stickers factory.

Glue Spreader (图3)

Glue Spreader (图4)

Shandong Menglianggu Machinery Manufacturing Co., Ltd. was new established in 1996. We have been deeply involved in the wood based panel machinery industry for 20 years, and have many industry equipment design experts.

We focus on the R&D and manufacturing of a full set of wood based panel machinery and equipment, and provide the whole plant planning and design scheme. The main products include a full set of high grade plywood production equipment, automatic particleboard production line and oriented particleboard production line and other industrial equipment.

We will provide you with professional customized service, quality and after sales guarantee. Your satisfaction is the goal we pursue. Thanks for the trust and support from friends all over the world.

We will live up to expectations and strive to move forward. I believe we will become your closest partner.

Glue Spreader (图5)

Glue Spreader (图6)

FAQ:

1. Can you customize products for clients?
Yes, We can customize and produce woodworking machines according to the customer’s requirements or drawings.

2. How can we trust your factory?
We recommend that you come to our factory to see the goods, to verify the real situation of the products, and know more about our factory.

3.Why does the price often change?
The price depends on the latest prices of the raw materials.

4. What about the contract signing?
If you’re satisfied with the products and our service, you can sign the contract with us, pay the deposit. Then we’ll produce the machines as soon as possible. If you are far away, we can sign the contract by fax. We will ensure the quality of the products and the accessories are complete.

5. How about delivery?
When the product is ready, it can be delivered to you after your full payment. We’ll provide technical guidance.
