Cold Press Machine_Shandong Menglianggu Machinery Manufacturing Co., Ltd.

Shandong Menglianggu Machinery Manufacturing Co., Ltd.

banner

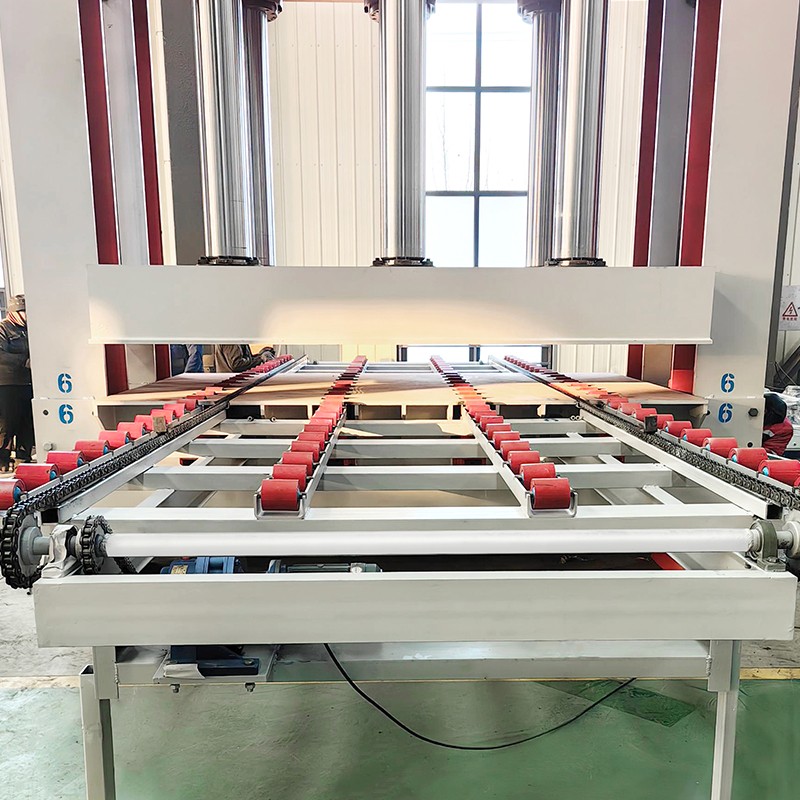

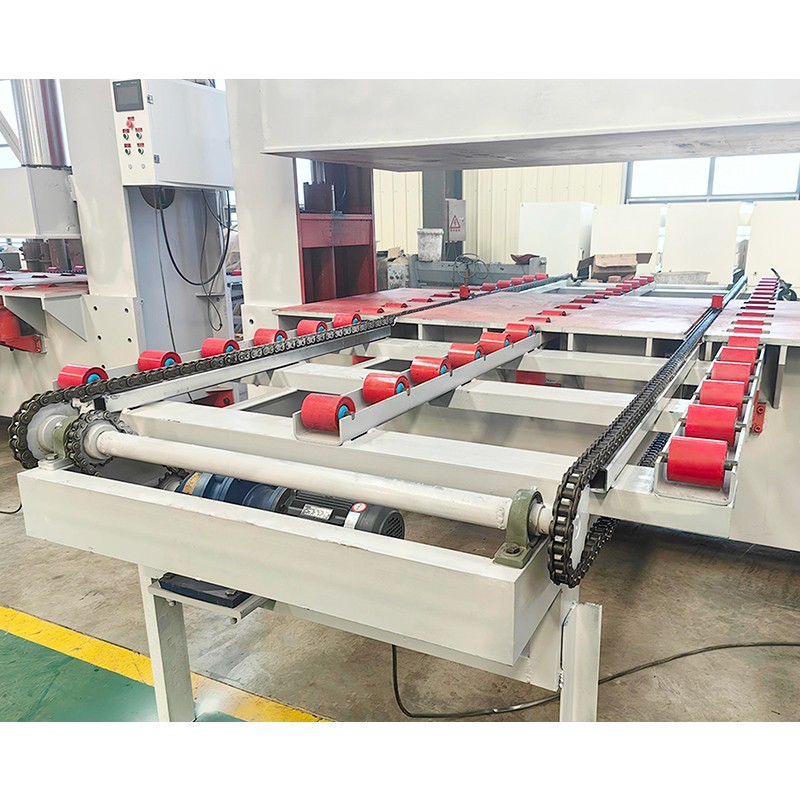

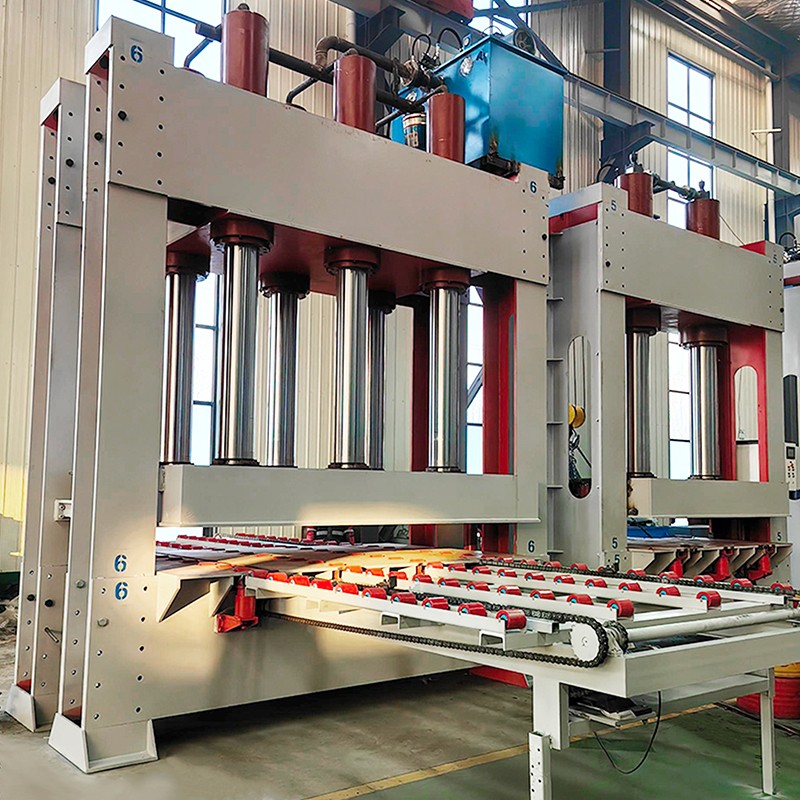

Cold Press Machine

Product Introduction

Product name:Cold Press Machine

Price:$15,000.00-$28,000.00


Specification of RotaryFace Veneer Peeling lathe

Model

400T Upper Cold Press

500T Upper Cold Press

400T ordinary cold press

Nominal gross pressure

400Tons

500Tons

400Tons

Place of cylinder

top

top

down

Nominal oil pressure

25Mpa

25Mpa

25Mpa

Dimension

3600*1370*4600mm

3600*1370*4600mm

3600*1370*4100mm

Framework

1800mm

1800mm

1800mm

Thickness of steel

30mm

35mm

30mm

Total weight

about12T

about13T

about12T

Controlling style

Automatic adding pressure.

automatic unload pressure

Automatic adding

pressure, automatic unload

pressure

Automatic adding pressure

automatic unload pressure



Place of Origin:

Shandong. China

Condition:

New

Type:

Cold Press Machine

Brand Name:

MLG

Voltage:

380V

Dimension(L*W*H)

3600*1370*4600mm

Power (kw):

11

Weight (KG):

1200 Kg

Applicable Industries:

Manufacturing Plant

Warranty

1 Year

Video outgoing inspection:

Provided

Key Selling Points.

Sustainable

Core Components:

Bearing, Motor, Pump, Gear, PLc, Other

Warranty of core components:

1 Year

Name:

Plywood Cold Press Machine

Usage:

Plywood Production


(1)Product overview

Cold press machine is the auxiliary in plywood production line, which is used to shorten the cycle time of hot press and improve the quality of plywood before gluing board.

Cold press machine belongs to the pressing machine.

Cold press machine is mainly used to press the gluing veneer, so that make the initial shape, and then into the hot press machine to press.

It is important to improve the quality of plywood, and it is an significant part.

Cold press machine in general consists with the rack, fixed beam, moving beam, the plate device, cylinder and hydraulic system, electric control device components.

We would like to make kinds cold press according to your demand.



(2)Main Features

1)The whole structure is designed and manufactured based on advanced international experience and new technological requirements;
2)The electric system and hydraulic system of the machine have been examined precisely and the free beam will not fall by its own
gravity with results assuring exxcellent quality;
3)The cylinder is made of super-hard matal,and the seal use low-resistance stepped gaskets, no leakage.
